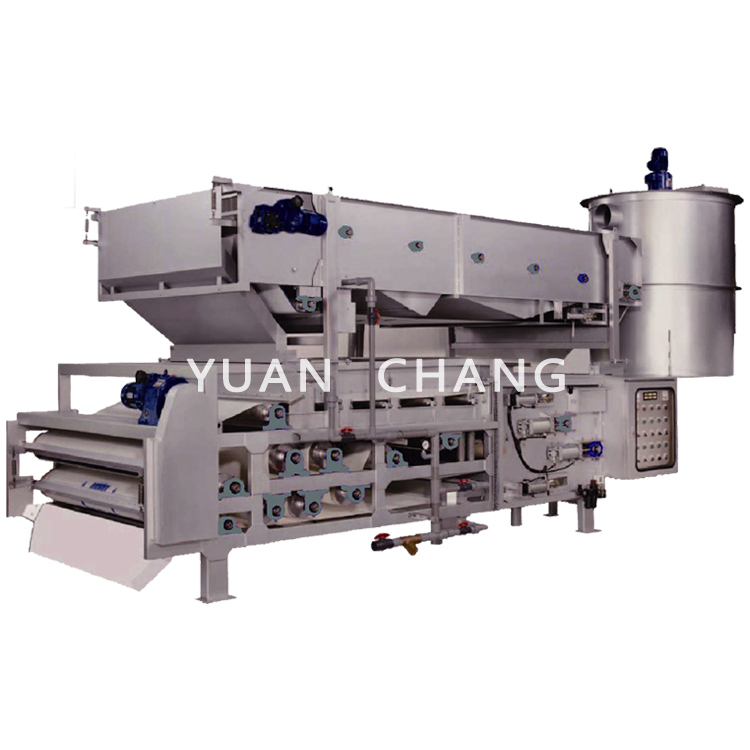

Belt Filter Presses (TE3-2000L)
Type: TE3-2000L (Conditioning + gravity filter belt thickening + double filter belt) →Triple filter belte
S.S. low / medium concentration
Conditioning + gravity filter belt thickening + double filter belt) → triple filter belt
Machine outline diagram
RC construction filtrate collecting tray (offered by client)
The Newest Super Water Saving, High-Pressure Reciprocating Type Washing System (Optional Accessory). It may completely substitute and solve the shortcomings of using the conventional type, save the huge cost of the treating recycling clean water of post-process. (Water saving rate：55~72%)
Standard specifications (Contact for customized)
|
|
TE3-2000L |
| Belt width (mm) | 2000 |
| Low consistency (S.S 0.4~0.8%) |
|
| Capacity (m³ /hr) | 60~80 |
| Absolute dryness (kg/hr) | 240~480 |
| Medium concentration (S.S 0.8~1.5%) | |
| Capacity (m³ /hr) | 50-60 |
| Absolute dryness D.S. (kg/hr) | 400~750 |
| Power usage (HP) |
|
| Belt driver(no step speed) | 2 |
| Conditioning mixer | 3/4 |
| Belt thickener(no step speed) | 1 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316/316L) |
| Referance dimension(mm) |
|
| L |
7000 |
| W | 3000 |
| H | 3500 |
| Base dimensions(mm) | |
| L1 x W1 | 5900 x 2900 |
| L2 x W1 | 4065 x 2440 |
| Reference weight (kgs) | 4300 |
Remarks：
- TE-1500 (including) and above models, TE3 full range of models are not equipped with the total drain pan under the filtrate.
- TE3 full range of models with static mixing tube is standard.
- The amount of treatment, absolute dryness, and moisture content of sludge cake (about 60 ~ 84%) all depend on the type, concentration and characteristics of sludge.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
- The washing pump (optional) needs to provide the best water pressure between 4.5~6.5kg/cm².
- Sludge Dewatering Example
- Reference Configuration Diagram for Peripheral Auxiliary Equipment
