Automatic bar screen(YC3 Series)

(Cable operated type - For heavy / extra heavy duty)

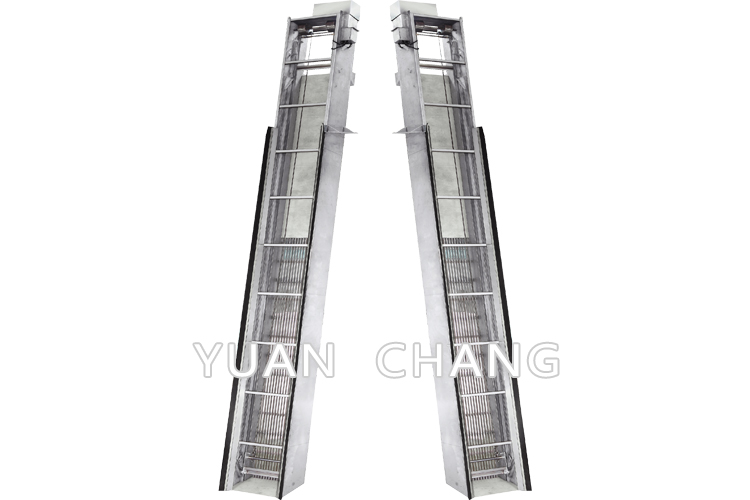

Automatic Bar Screen(YC3-45) Type: YC3-45 (Cable operated type - For heavy / extra heavy duty)	Automatic Bar Screen(YC3-60) Type: YC3-60 (Cable operated type - For heavy / extra heavy duty)	Automatic Bar Screen(YC3-90) Type: YC3-90 (Cable operated type - For heavy / extra heavy duty)	Automatic Bar Screen(YC3-120) Type: YC3-120 (Cable operated type - For heavy / extra heavy duty)
Automatic Bar Screen(YC3-150) Type: YC3-150 (Cable operated type - For heavy / extra heavy duty)	Automatic Bar Screen(YC3-200) Type: YC3-200 (Cable operated type - For heavy / extra heavy duty)	Automatic Bar Screen(YC3-250) Type: YC3-250 (Cable operated type - For heavy / extra heavy duty)

Spec.		YC3-45			YC3-60			YC3-90			YC3-120
Spec.		Model
Bar spacing(mm)		10	20	30	10	20	30	10	20	30	10	20	30	50
Capaclty(water) (m³ /hr)		1550	1950	1900	1900	2600	2900	3400	4000	4300	4500	4900	5450	5900
Effective screen width W1 (mm)		450			600			900			1200
Machine bottom width W2 (mm)		550			700			1010			1380
Channel width W3 (mm)		700			850			1160			1480
Effective water depth H1 (mm)		The treatment volume is calculated by the water depth of 2M
Channel depth H2 (mm)		Depends on the needs of the site(general 3~5M)
Slag discharge height H3 (mm)		Depending on the needs of the machine
Installation angle		≥75°
Bar screen drive (HP)		1/2			1/2			1			1
Hook moving speed (M/min)		About 6
Overgate flow speed(M/s)		≤1
Machine material	Standard	Stainless Steel (SUS304)
Machine material	Optional	Stainless steel (SUS316) 、Other special materials
Reference machine dimensions(mm)	L	Depending on the needs of the machine
	W	990			1150			1470			1790
	H	Depending on the needs of the machine
Reference weight (kgs)		Depending on the needs of the machine

Spec.		YC3-150				YC3-200				YC3-250
Spec.		Model
Bar spacing(mm)		10	20	30	50	20	30	50	75	20	30	50	75
Capaclty(water) (m³ /hr)		5700	6100	6800	7400	8200	9050	9900	10300	10200	11300	12400	12900
Effective screen width W1 (mm)		1500				2000				2500
Machine bottom width W2 (mm)		1680				2200				2750
Channel width W3 (mm)		1800				2320				2870
Effective water depth H1 (mm)		The treatment volume is calculated by the water depth of 2M
Channel depth H2 (mm)		Depends on the needs of the site(general 3~5M)
Slag discharge height H3 (mm)		Depending on the needs of the machine
Installation angle		≥75°
Bar screen drive (HP)		2				3				3
Hook moving speed (M/min)		About 6
Overgate flow speed(M/s)		≤1
Machine material	Standard	Stainless Steel (SUS304)
Machine material	Optional	Stainless steel (SUS316) 、Other special materials
Reference machine dimensions(mm)	L	Depending on the needs of the machine
	W	2090				2610				3150
	H	Depending on the needs of the machine
Reference weight (kgs)		Depending on the needs of the machine
