Automatic bar screen(YCR Series)

(Rotary type)

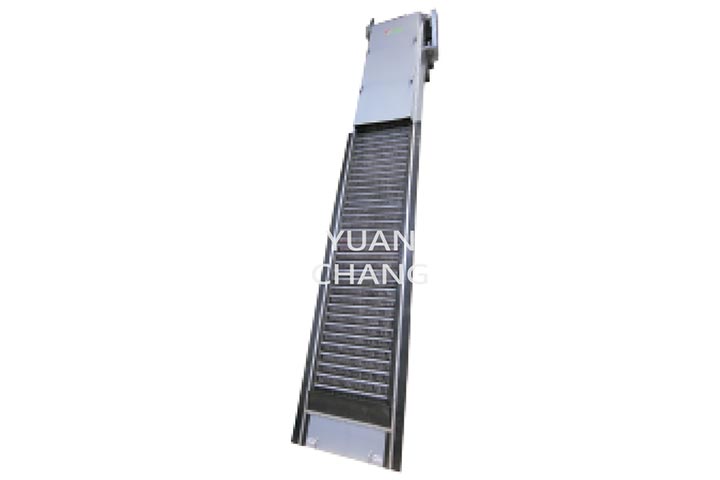

Automatic Bar Screen(YCR-45) Type: YCR-45 (Rotary type)	Automatic Bar Screen(YCR-60) Type: YCR-60 (Rotary type)	Automatic Bar Screen(YCR-90) Type: YCR-90 (Rotary type)	Automatic Bar Screen(YCR-120) Type: YCR-120 (Rotary type)
Automatic Bar Screen(YCR-150) Type: YCR-150 (Rotary type)	Automatic Bar Screen(YCR-200) Type: YCR-200 (Rotary type)

Spec.		YCR-45	YCR-60	YCR-90	YCR-120	YCR-150	YCR-200
Spec.		Model
Separation mesh aperture(mm)		10、20、30、50、75
Capacity(water) (m³ /hr)		675~1620	900~2160	1350~3240	1800~4320	2250~5400	3000~7200
Effective screen width W1 (mm)		450	600	900	1200	1500	2000
Machine bottom width W2 (mm)		630	780	1080	1380	1680	2180
Channel width W3 (mm)		730	880	1180	1480	1780	2280
Effective water depth H1 (mm)		The treatment volume is calculated by the water depth of 1M
Channel depth H2 (mm)		Depends on the needs of the site(general 1~5M)
Slag discharge height H3 (mm)		Depending on the needs of the machine
Installation angle		60°~80°(Standard 75°)
Bar screen drive(KW)		0.56~0.75	0.56~0.75	0.75~1.12	0.75~1.12	1.12~2.25	1.12~2.25
Over gate flow speed(M/s)		0.5~1.0
Screen line speed(M/min)		≤3
Machine material	Standard	Stainless Steel (SUS304)
Machine material	Optional	Stainless steel (SUS316) 、Other special materials
Reference weight (kgs)		Depending on the needs of the machine
