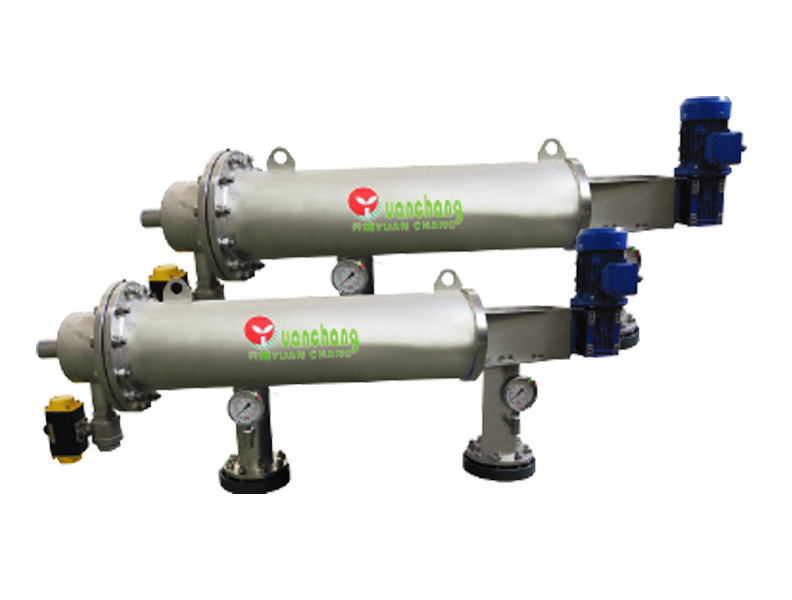

Intelligent Differential Pressure Precision Filter(FB6-60)
Type: FB6-60 (Brush Type)
Brush Type
Usages:
- Pre-treatment for pure water, reverse osmosis, and ion exchange.
- Filtration of rust and impurities from groundwater and surface water.
- Filtration for municipal green space irrigation, agricultural sprinkling, and irrigation water.
- Filtration of reclaimed water containing solid substances and particulates (non-S.S. types).
- Cooling tower circulating water filtration for industries such as steel, petrochemical, papermaking, metallurgy, heat treatment, and central air conditioning.
- Filtration of recycling water in car wash facilities.
- Swimming pool circulation filtration and municipal reclaimed water filtration.
- Filtration of production and reclaimed water in the food industry.
- Water filtration for household water supply and production processes.
- Filtration for water supply with higher quality requirements for equipment.
- Purification and filtration of alcohol after fermentation.
Machine outline diagram
Standard specifications (Contact for customized)
|
|
FB6-60 |
| Maximum clean water capacity(m³ /hr) | 150 |
| Filtration area (cm²) | 2700 |
| Filtration aperture(um) | 50~1000 |
| Power usage (HP) |
1/4 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316)、other special material |
| Referance dimension(mm) |
|
| L |
1000 |
| W | 710 |
| H | 790 |
| Filter Barrel Inner Diameter x Length (ø x mm ) | 150 x 600 |
| Reference weight (kgs) | 100 |
Remarks：
- Washing pump and sewage pump are optional, please contact us separately
- The above listed data is subject to the on-site process and water quality conditions
- The specification is accepted outside the specification, and the company reserves the right to design changes
- Images are for reference only; actual machines delivered may vary.
- Please request the actual installation dimension drawing before ordering
