Inclined plate type rapid sedimentation tank‐DAT Series
DAT系列 斜板式快速沉澱槽
Machine outline diagram

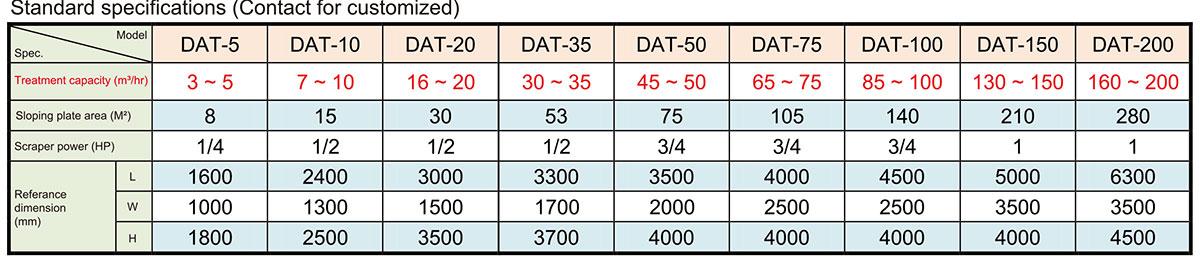

Standard specifications (Contact for customized)
Remark:
*According to the water quality and quantity, on-site conditions, the operation, water direction, size, floor space, etc. are flexibly adjusted.
*The specifications are accepted outside the specification, and the company reserves the right to design changes.
*Please ask for the actual installation dimension drawing before ordering.

Features
*The small footprint only 10% of the traditional sedimentation tank, which is 1/4 of the by length of the advection sedimentation tank, but the precipitation efficiency is increased by 3-5 times.
*Highly 3-Stimes. integrated equipment for equipment, all on-site production, easy installation, and effective saving of construction time.
*The equipment is sloping plate sedimentation, and there is no problem that the general inclined tube is blocked.
*The muddy mud can be automatically dropped into the slag bucket to facilitate mud discharge and reduce the labor intensity of the slag.
*According to the customer's needs, the mixer, the chemical tank and the mixed reaction tank can be used to coagulate the sewage at the same time, which exa]pands the function of the equipment.
*Equipment operation, maintenance and cleaning are easy.
Usages
*Treatment of industrial wastewater, domestic sewage, and non-ferrous metal processing wastewater. Biochemical water treatment and pretreatment of water purification.
*Treatment of hydraulic dust removal wastewater from power plants and boiler rooms, and washing water treatment at gas stations.
*Wastewater from coal mines, beneficiation wastewater, stone, mine sewage, printing and dyeing, bleaching and dyeing, tanning, food, chemical industry
*Townships, small and medium-sized enterprises and institutions to improve the quality of drinking water and small sewage projects.
