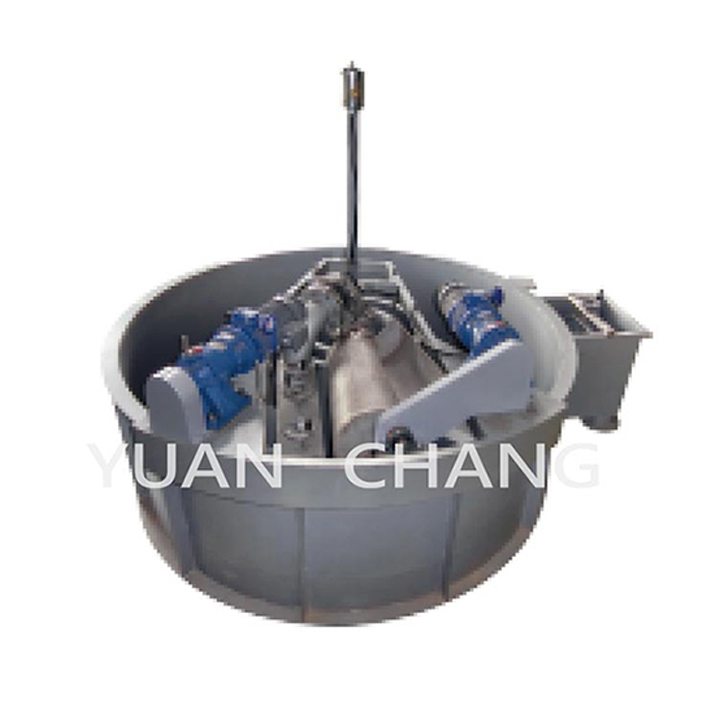

Air flotation equipment(DAL-40)
Type: DAL-40 Shallow air flotation equipment
Shallow
Advantages
- Small footprint, law investment and low operating costs.
- Easy to operate and easy to maintain.
- Programmable control with high degr of automation.
- The hydraulic retention time is short, the processing capacity is large, and the outflow water quality is stable.
Features
- The air machine collects and integrates the structural design, which can effectively reduce the space requirement, and the overall appearance is exquisite and the energy consumption is low.
- The dissolved gas efficiency is high, the treatment effect is stable, and the dissolved gas pressure and the dissolved gas water refill ratio can be adjusted as needed.
- Fully automated, easy to operate, and easy to manage.
USAGES
- Shallow air flotation machines are not only suitable for sewage treatment projects, but also for tap water supply projects
- It is applied to tap water plants that use lake water as a water source to remove algae and reduce turbidity.
- Can be widely used in paper, leather, pharmaceutical, steel, oil refining, ship power, chemical, electroplating, food processing, beer, municipal sewage, textile, printing and dyeing, starch and other industries.
- It is applied to the recycling of useful materials in industrial wastewater, such as fiber recycling in the papermaking and pulp industry process water.
Machine outline diagram
Standard specifications (Contact for customized)
|
|
DAL-40 |
| Treating capacity (m³ /hr) Influent concentration (S.S0.1~0.3%) |
30~40 |
| Concentrated sludge water content(%) | 2~5 |
| Power usage (HP) |
|
| Drive machine (no step change) | 1/2 |
| Scraper(no step change) | 3/4 |
| Emulsified water pressurized pump(Optional) | Depends on the SS concentration of the water quality of the case |
| Main tank body and air dissolution tank material |
|
| Standard | Contact parts SUS304 + externally reinforced SS400 + Epoxy Epoxy anti-corrosion treatment |
| Optional | All stainless steel SUS304、SUS316 |
| Main Body-Referance dimension(mm) |
|
| A(Φ) |
3000 |
| H | 900 |
| H1 | 650 |
| Air soluble barrel-Referance dimension(mm) |
|
| (Φ) x L | 300 x 1500 |
Remarks：
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
- The piping belongs to the on-site pipeline configuration project.
