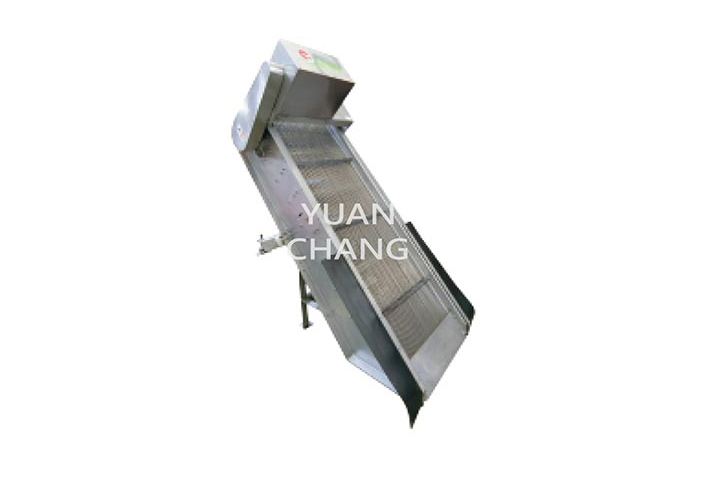

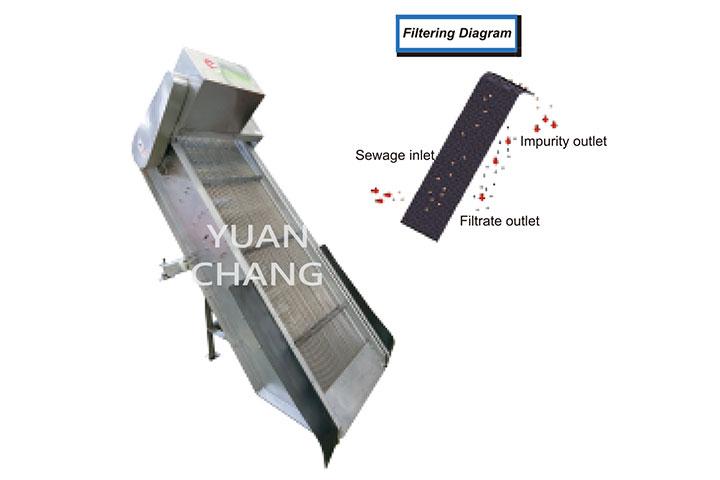

Automatic Bar Screen(YC1-30)
Type: YC1-30 (back rack type‐small/medium slag amount)
Back Rack Type‐Small/Medium slag amount
Usages:
Mainly used in hospitals, school facilities, social life water, small municipal water, small and medium-sized industrialwater, and pre-stage flow suspension and solid matter removal and protection post-treatment equipment (water pump) evacuation foreign object blockage.
Generally used as a fine/medium grid.

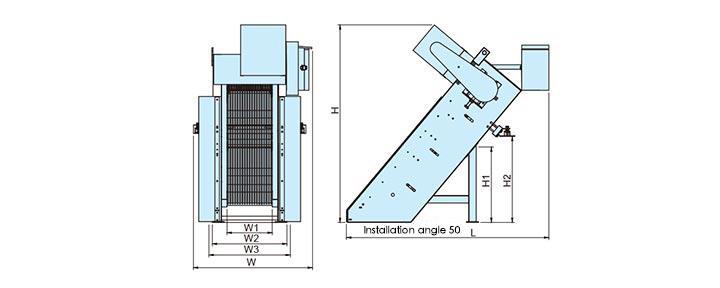

Machine outline diagram
Standard specifications (Contact for customized)
|
|
YC1-30 |
| Bar spacing(mm) |
4 / 6 / 8 |
| Capaclty(water) (m³ /hr) |
120 / 156 / 181 |
| Effective screen width W1 (mm) |
300 |
| Machine bottom width W2 (mm) |
495 |
| Channel width W3 (mm) |
540 |
| Effective water depth H1 (mm) |
500 |
| Channel depth H2 (mm) |
570 |
| Installation angle |
50° |
| Bar screen drive (HP) |
1/4 |
| Material |
|
| Standard |
Stainless steel (SUS304) |
| Optional |
Stainless steel (SUS316) 、Other special materials |
| Reference dimension (mm) |
|
| Length L |
1350 |
| Width W |
810 |
| Height H |
1350 |
| Reference weight (kgs) |
150 |
Remarks：
- Long-fiber, long-haired or rope-like substances in wastewater (sewage) are not suitable for this model, special care.
- This model is designed for channel depths of approximately 1 meter
- The above table shows the demand and construction work and water quality.
- Please contact for the fence size and handling capacity for different applications
- The following parameters must be provided when ordering: channel enthalpy, channel depth, installation angle, grid spacing, slagging height, maximum water level
- Revised purchase type indication-Ex. YC1-30-6 (model - effective screen width - bar spacing).
- The specification is accepted outside the specification, and the company reserves the right to design changes
- Please request the actual installation dimension drawing before ordering
