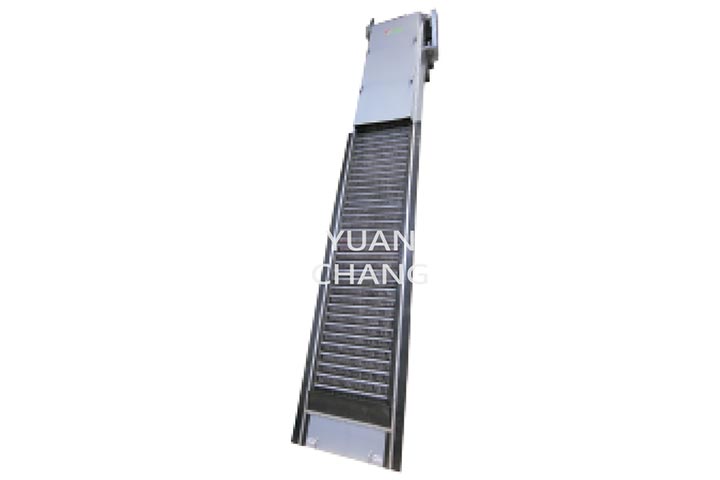

Automatic Bar Screen(YCR-60)
Type: YCR-60 (Rotary type)
Rotary Type-The rotary dumper has a compact size and light weight, enabling continuous automatic solid-liquid separation.
Features:
- The rotary dumper has a compact size and light weight, enabling continuous automatic solid-liquid separation.
- High degree of automation, no vibration, no noise, high separation efficiency and long service life.
- When the sewage trap is in normal operation, it has self-cleaning force and no clogging, and the power consumption of the equipment is small.
- The transmission parts of the fouling machine are all installed above the canal, which is convenient for installation and maintenance.
It is applied to urban sewage treatment plants, waterworks, power plant inlets, and automatically intercepts and removes floating objects in the water to ensure the normal operation of the next process.
Solid-liquid separation solids removal in tannery wastewater treatment and papermaking wastewater treatment projects.
Usages:
- Mainly used for solid-liquid separation at the inlet of shallower channels.such as water supply and drainage pumping stations, sewage and rainwater pumping stations, sewage treatment plants, water purification plants, etc.
- Suitable for solid waste removal in domestic sewage treatment, textile printing and dyeing wastewater treatment, slaughtering, sugar making, wine making and food processing wastewater treatment.
- It is applied to urban sewage treatment plants, waterworks, power plant inlets, and automatically intercepts and removes floating objects in the water to ensure the normal operation of the next process.
- Solid-liquid separation solids removal in tannery wastewater treatment and paper making wastewater treatment projects.
Machine outline diagram
Standard specifications (Contact for customized)
|
|
YCR-60 |
| Bar spacing (mm) |
10 / 20 / 30 / 50 / 75 |
| Capacity(water) (m³ /hr) |
900~2160 |
| Effective screen width W1 (mm) |
600 |
| Machine bottom width W2 (mm) |
780 |
| Channel width W3 (mm) |
880 |
| Effective water depth H1 (mm) |
The treatment volume is calculated by the water depth of 1M |
| Channel depth H2 (mm) |
Depends on the needs of the site(general 1~5M) |
| Slag removal height H3(mm) | Depending on the needs of the machine |
| Installation angle |
60° ~ 80°(Standard 75°) |
| Overgate flow speed(M/s) | 05 ~ 1.0 |
| Screen line speed(M/min) | ≤ 3 |
| Bar screen drive(KW) | 0.56~0.75 |
| Material |
|
| Standard |
Stainless steel (SUS304) |
| Optional |
Stainless steel (SUS316) 、Other special materials |
| Reference dimension (mm) |
|
| Reference weight (kgs) |
Depending on the needs of the machine |
Remarks:
- Same as the remarks of YC3 series.
- When ordering, the model number is shown-Example YCR-45-10(i.e.model-effective screen width-rake teeth opening)
