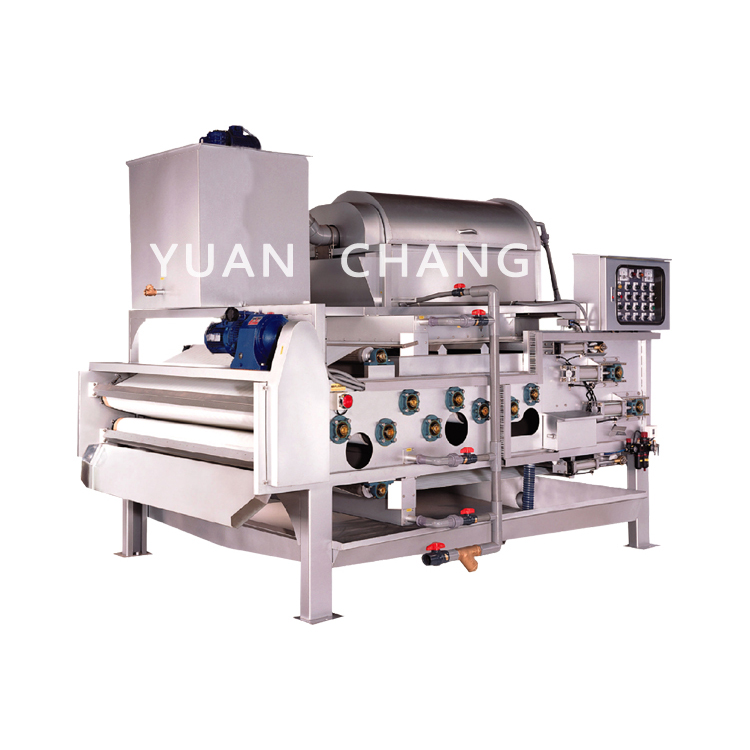

Belt Filter Presses (TB-750)
Type: TB-750 (Conditioning + drum thickening + double filter belt)
S.S standard concentration
Conditioning + drum thickening + double filter belt
Machine outline diagram
Standard specifications (Contact for customized)
|
|
TB-750 |
| Belt width (mm) | 750 |
| Capacity (m³ /hr) Influent concentration (S.S 1.5~2.5%) |
4.5~7.5 |
| Absolute dryness (kg/hr) | 68~113 |
| Power usage (HP) |
|
| Belt drive(no step change) | 1/2 |
| Conditioning mixer | 1/4 |
| Drum thickener | 1/4 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316/316L) |
| Referance dimension(mm) |
|
| L |
2600 |
| W | 1300 |
| H | 2600 |
| Reference weight (kgs) | 970 |
Remarks：
- TB-2000 model are not equipped with the total drain pan under the filtrate.
- The amount of treatment, the amount of dryness.
- The moisture content of the cake (between 65 and 85%) depend on the type, concentration and characteristics of the sludge.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
- The washing pump(optional)needs to provide the best water pressure between 4.5 and 6.5kg/cm².
