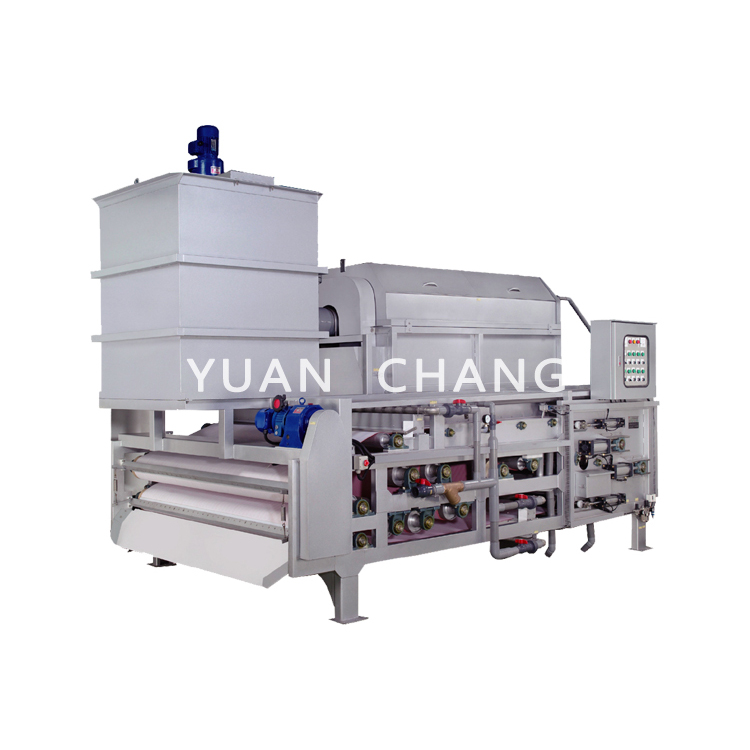

Belt Filter Presses (TE-2500L)
Type: TE-2500L (Conditioning + drum concentration + double filter belt)
S.S standard concentration
Conditioning + drum thickening + double filter belt

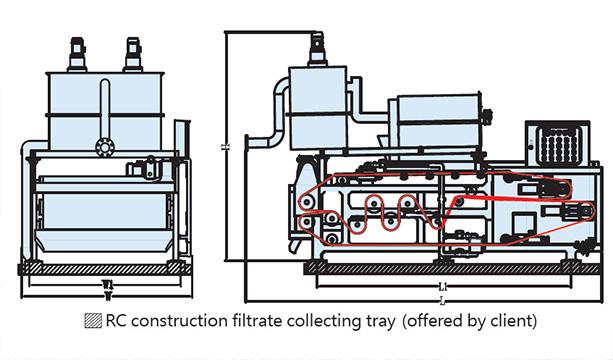

Machine outline diagram
Standard specifications (Contact for customized)
|
|
TE-2500L |
| Belt width (mm) | 2500 |
| Capacity (m³ /hr) Influent concentration (S.S 1.5~2.5%) |
38.5~64 |
| Absolute dryness (kg/hr) | 578~960 |
| Power usage (HP) |
|
| Belt drive(no step change) | 3 |
| Conditioning mixer | 1 x 2 |
| Drum thickener | 3/4 x 2 |
| Machine material |
|
| Standard | Stainless Steel (SUS304) |
| Optional | Stainless steel (SUS316/316L) |
| Referance dimension(mm) |
|
| L |
5500 |
| W | 3350 |
| H | 3750 |
| Reference weight (kgs) | 4300 |
Remarks：
- TE-1500 (including) and above models, TE3 full range of models are not equipped with the total drain pan under the filtrate.
- TE3 full range of models with static mixing tube is standard.
- The amount of treatment, absolute dryness, and moisture content of sludge cake (about 60 ~ 84%) all depend on the type, concentration and characteristics of sludge.
- The specifications are accepted outside the specification, and the company reserves the right to design changes.
- Please ask for the actual installation dimension drawing before ordering..
- The washing pump(optional)needs to provide the best water pressure between 4.5 and 6.5kg/cm².
