Wastewater Solid-Liquid Separator(DG Series)

(Inner wheel screen)

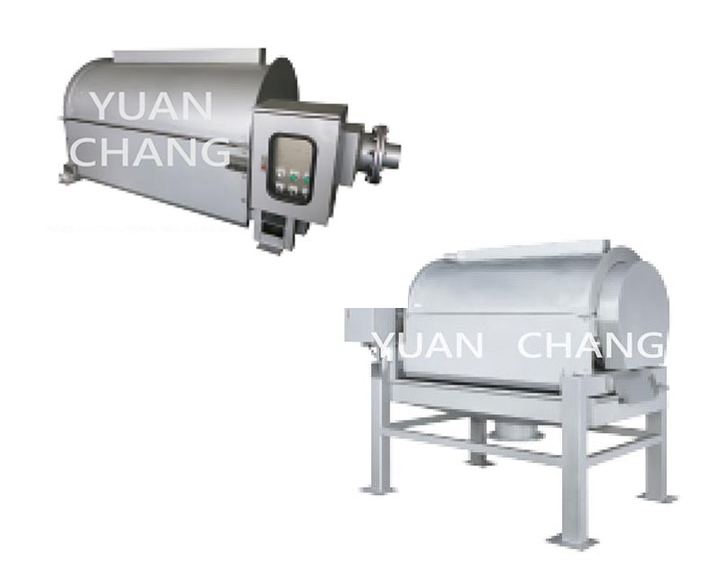

Solid-Liquid Separating Machine(DG-40) Type: DG-40 (Inner wheel screen)	Solid-Liquid Separating Machine(DG-60) Type: DG-60 (Inner wheel screen)	Solid-Liquid Separating Machine(DG-80) Type: DG-80 (Inner wheel screen)	Solid-Liquid Separating Machine(DG-100) Type: DG-100 (Inner wheel screen)
Solid-Liquid Separating Machine(DG-130) Type: DG-130 (Inner wheel screen)	Solid-Liquid Separating Machine(DG-150) Type: DG-150 (Inner wheel screen)	Solid-Liquid Separating Machine(DG-150L) Type: DG-150L (Inner wheel screen)

Spec.			DG-40	DG-60	DG-80	DG-100	DG-130	DG-150	DG-150L
Spec.			Model
Capacity(water) (m³ /hr)	Screen slit(spacing)(mm)	0.5	49	106	166	185	309	394	573
		1.0	91	199	312	348	581	739	1075
		1.5	145	316	496	554	924	1175	1710
		2.0	202	440	689	769	1284	1633	2376
		3.0	x	608	955	1065	1778	2263	3292
Power usage (HP)	Standard	Drum drive (inverter)	1/2	1	2	2	3	3	5
Power usage (HP)	Optional	Washing pump	Power demand will vary depending on the spacing of the screen
Machine material		Standard	Contact part stainless steel SUS304、 base carbon steel SS400 anti-corrosion treatment
Machine material		Optional	Stainless steel SUS304 or SUS316, Other special materials
Reference machine dimensions (mm)		L	1750	2250	2750	2950	3680	3750	4750
		W	900	1280	1450	1750	2100	2350	2350
		H	950	1050	1250	1450	1750	2100	2100
Reference weight (kgs)			300	450	900	1200	1950	2700	3500
