Screw Press Type
Description
Traditional filter (the filter barrel) function only using backwash or manual cleaning filter core, can not effectively prevent the clogging of filter core. After a period of using time, the water production decline, filter clogging is bound to stop frequently to clean filter or replace the filter, the cost of long-term use is very high.

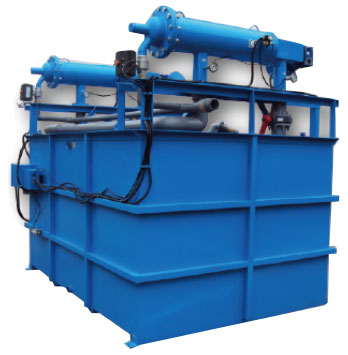

Yuan Chang Tsay develops Intelligent Differential Pressure Precision Filter, minimum accuracy can reach filtering 10um (size of approximately macromolecules). Filters are made of around 3 to 5 layers of sintering, the thickness reach 1.5mm or more, be able to bear high pressure and no need to replace the filter. Using a pressure sensor, when the pressure is increased will automatically clean the filter and discharge blocking material at the same time. When self-cleaning filter, water production only slightly reduce (approximately 50L/Lot), without downtime, improve performance, and reduce the cost of labor and replace the filter.

Description
◈High precision and stable water filtration.
◈Pressure difference through the electronic control, timer control, automatic backwash, no personnel to operate.
◈Backwashing without stopping produce water, continuous operation, stable and reliable.
◈Simple device structure, fewer parts, the low cost of operation and maintenance, easy operation and management.
◈The wide usage area and applicable to different water source for filtration.
◈Pure water, reverse osmosis, ion exchange pretreatment.
◈The central air conditioning cooling water filter.
◈The swimming pool cycle water filtration.
◈Reclaimed water recycling.
◈The municipal green spray, agricultural spraying filter.
◈Ships' ballast water filtration.
◈The car wash cycle water filtration.
◈Groundwater, surface water, rust filtering.
◈The iron and steel, petrochemical, paper making, metallurgy and other industries cooling water filter.

Specification
FA Series


Spec./Model FA-15 FA-30 FA-45 FA-60
Filter Diameter (micron) 10~800 10~800 10~800 10~800

Filter Area(cm²)

1500 3000 4500 6000
Treatment Capacity(CMH) 80 150 250 400
Machine Frame Material Standard Stainless Steel(SUS304)
Option Stainless Steel(SUS316),(Other special materials)
Power Consumption (HP) 1/4 1/4 1/4 1/2

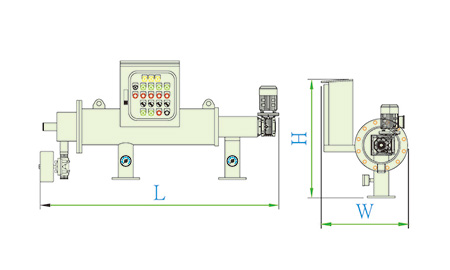

ExternalDimensions(mm) (Reference)

L 1400 1750 1950 2200
W 710 740 780 840
H 790 820 900 930
Reference weight(kgs) 170 220 290 380


FB Series


Spec./Model FB6-100 FB8-100 FB10-100 FB12-100
Filter Diameter (micron) 50~1000 50~1000 50~1000 50~1000

Filter Area(cm²)

4500 6000 7500 9000
Treatment Capacity(CMH) 250 340 450 540
Machine Frame Material Standard Stainless Steel(SUS304)
Option Stainless Steel(SUS316),(Other special materials)
Power Consumption (HP) 1/4 1/4 1/2 1/2

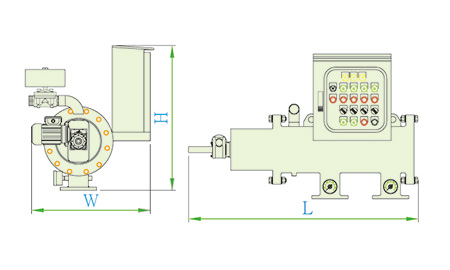

ExternalDimensions(mm) (Reference)

L 1400 1750 1950 2200
W 710 740 780 840
H 790 820 880 950
Reference weight(kgs) 130 180 230 290
Remark:
◈Washing Pump and Sewage Pump are optional , please contact us directly.
◈The above data depends on the actual treating method and the pollution condition of the waste water.
◈Yuan Chang reserves the right of modification and accepts customer’s special order.
◈The above Picture (Colors and Accessories) for reference only , the actual Product depends on mutual order agreement
Intelligent Differential Pressure Precision Filter
